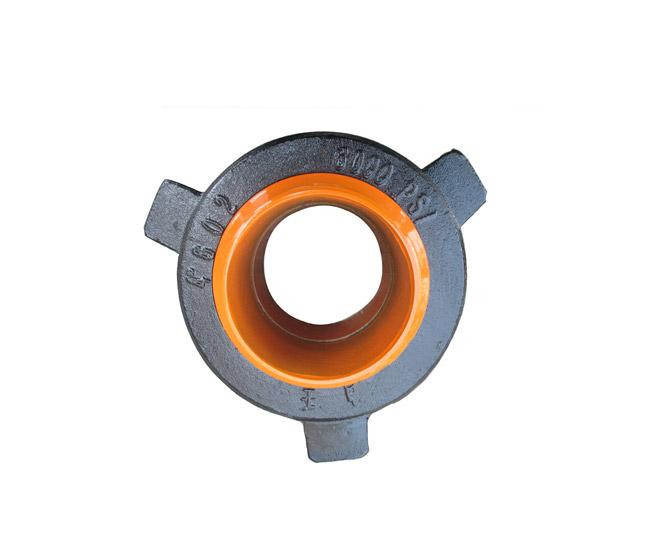

6,000 psi cold working pressure
Recommended service:
Manifold line connections and mud service
Features:
1. Replaceable, lip-type seal provides primary seal, protects secondary metal-to-metal seal, and minimizes flow turbulence
2. Butt-weld available
3. Available for sour gas service at 6,000 psi cold working pressure
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers.
Nominal pipe size | Total length | countersink | Nut radius | Material | Weight | ||||||
in | mm | in | mm | in | mm | in | mm | nut | subs | Ibs | kgs |
1 | 25.4 | 317/32 | 89.7 | 1/4 | 6.4 | 25/16 | 58.75 | SF | SF | 3.5 | 1.6 |
2 | 50.8 | 51/4 | 133.3 | 1/4 | 6.4 | 39/16 | 90.5 | SF | SF | 13.25 | 5.9 |
3 | 76.2 | 63/8 | 161.92 | 3/8 | 9.5 | 45/8 | 117.5 | SF | SF | 21.0 | 9.5 |
4 | 101.6 | 81/16 | 208.0 | 3/8 | 9.5 | 51/4 | 133.4 | SF | SF | 33.0 | 15.0 |
SC=Casting steel SF=Forging steel AS=alloy steel
Can be produced according to customer requirements
